Especificaciones

Processor / System Bus
2 x Socket
Intel® Xeon® Processor Scalable Family (Up to 350W)

Core Logic

Memory
Total Slots : 16 (8-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 2TB per CPU socket
Memory Type :
4th: 4800 MHz (1DPC)
5th: 5600/4800 MHz (1DPC)
Memory Size :
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS

* Refer to support page for more information

Expansion Slots
Up to 6 slots
5 x PCIe Gen5 x16 link
1 x PCIe Gen5 x8 link

Form Factor
 E-ATX (12”x13”, 304.8mmx330.2mm)

Storage
Storage Controller :
10 x SATA 6Gb/s ports (8 by 2 Slimline SASConnector)
2 x M.2 connector (1 up to 2280, 1 up to 22110)

Networking
2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
1 x Mgmt Port

Graphic
 Aspeed AST2600 64MB

On Board I/O
1 x TPM header
3 x PSU Power Connector (1 x 24-pin ATX power connector + 2 x 8-pin ATX 12V power connector)
1 x USB3.2 Gen1 header
1 x USB 2.0 header
8 x Fan Header, 4pin
1 x SMBus
1 x Chassis Intruder
2 x M.2 connector
2 x MCIO connector
2 x SATA connector
2 x Slimline SAS connector
1 x Onboard header for optional management card

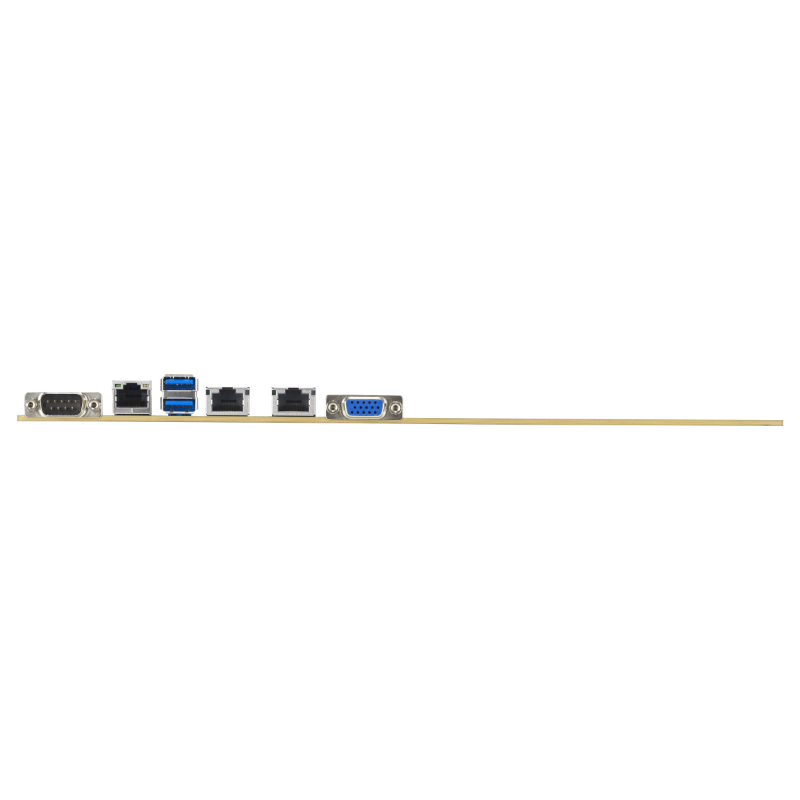

Back I/O Ports
2 x USB3.2 Gen1 ports
1 x Serial Port
1 x VGA Port
2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
1 x Mgmt Port

Management Solution
ASUS Control Center (in-band)
ASMB11-iKVM (out-of-band/BMC AST2600)

Weight
Gift Box (1-in-1)
Net Weight :  1.75KG
Gross Weight : 2.75KG
Bulk Pack (10-in-1)
Net Weight :  17.5KG
Gross Weight :  20KG

Environment
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% (Non condensing)
